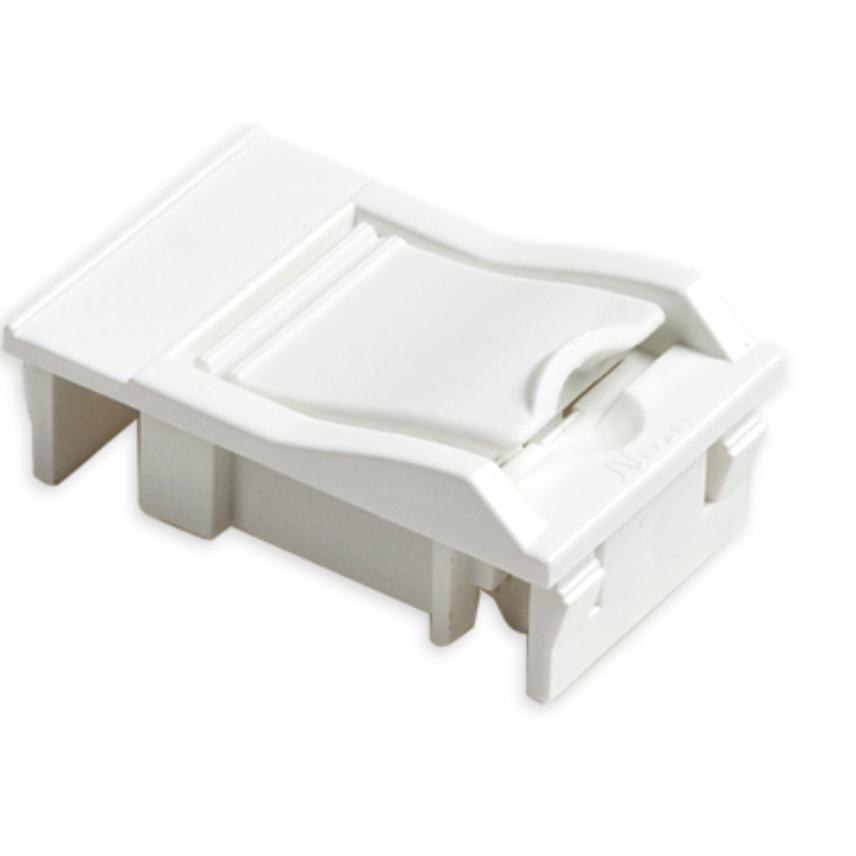

LANmark UK Style LJ6C Module 1 Snap-In White

Beskrivelse

Beskrivelse

Standarder

  • Internasjonal
    ISO/IEC 11801

Application

This module can accommodate one LANmark Snap-In connector and is designed to be used in mounting plates with LJ6C cut-outs, such as those commonly found in UK style floor boxes.

The module can also be used with LANmark fibre Snap-In adaptors, provided that sufficient space in the floor box is foreseen for the fibre slack.

The module has 25 x 38 mm overall dimensions and has clips to fit into standard LJ6C cut-outs.

An angled version is also available (N424.325).

Especially when installing high performance cables, such as Category 6A and Category 7/7A, using an angled module is highly recommended, to ensure that the minimum bend radius of the cable is maintained.

Design

The LANmark LJ6C Snap-In module is equipped with a white removable shutter which can easily be replaced with an optional coloured version (7 colours available). This allows differentiation between various services: each application can be allocated a specific colour of shutter on the outlet and floor box in the work area, which can be combined with matching colours of shutters on the panels in the cabinet area and with corresponding colours of latch protectors on the LANmark UniBoot patch cords.

The module is supplied in white (RAL 9003) with a polished finish. The material is PC/ABS and is UL 94V-0 rated and both RoHS and REACH compliant.

Installation

LANmark Snap-In connectors can easily be inserted in the aperture with a one-click operation.

The module can be simply clicked in to a mounting plate, without the need for tools.

Cut-out dimensions LJ6C

Karakteristikker

Karakteristikker

Dimensjonsegenskaper

Dimensjonsegenskaper

Bredde
- mm
Dybde
- mm
Høyde
- mm
