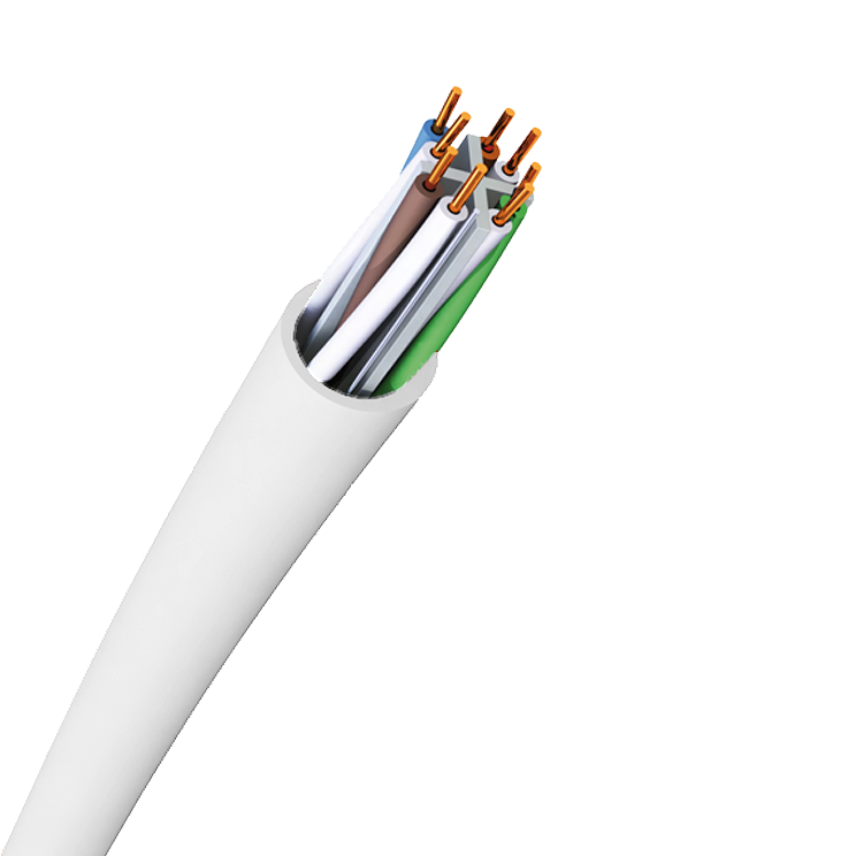

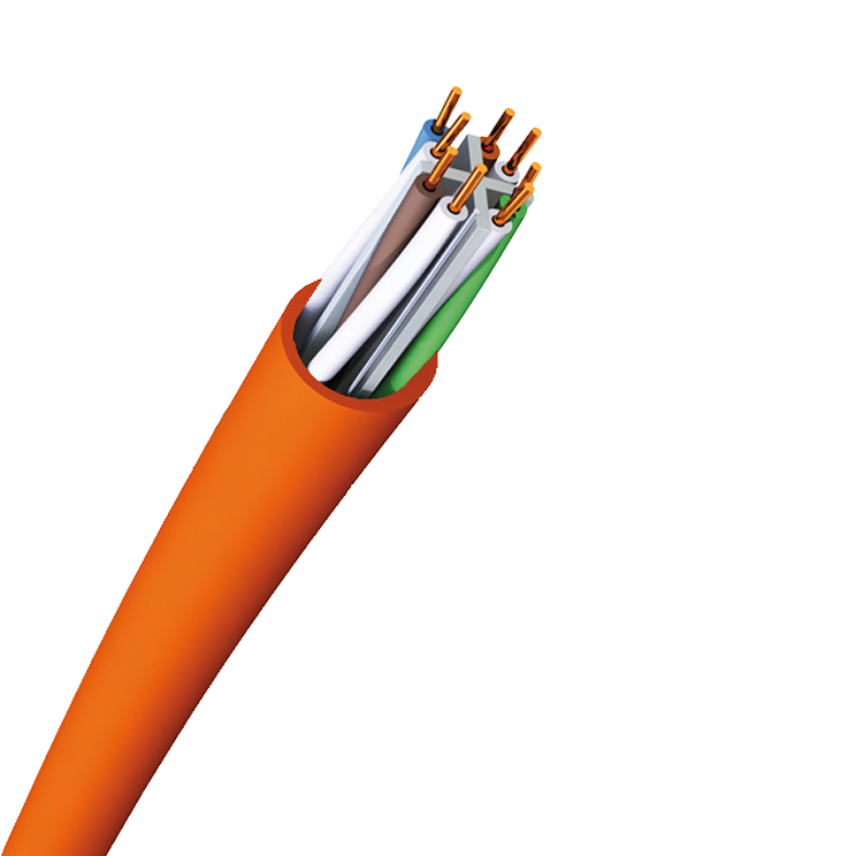

U/UTP Kategori 6 LSZH Kabel Dca Klasse
U/UTP Kategori 6 LSZH Kabel Dca Klasse
- Samsvarer med nyeste Kat 6 standard
- Garantert ytelse til 250MHz
- Patentert sentralkryssteknologi for å opprettholde geometri og ytelse
- Støtter Gigabit Ethernet
- RoHS EC-direktiv 2002/95/EC kompatibel
- LSZH kappe
Beskrivelse
Beskrivelse
Standarder
-
ProductANSI/TIA-568-C.2; EN 50173-1; IEC 61156-5
-
InternasjonalISO/IEC 11801
Application
Nexans U/UTP Category 6 cables are the mid-range 250MHz offering from Nexans. Manufactured in accordance with ISO IEC 61156-5 requirements, the U/UTP cable is the best choice to support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, … The Cat 6 U/UTP cables are suitable for basic voice and data installations up to 250 MHz.
Performance
Nexans Category 6 cables are compliant with the requirements of EN 50288 and ISO IEC 61156-5 standards. Used with Cat 6 connectivity, these cables are compliant with Class E link requirements as described in EN 50173 Edition 2 and ISO 11801 Edition 2 standards.
Features
- Central cross for improved geometry and performance
- Central cross member reduces risk of crushing or kinking
- Compact design for minimum volume in ducts or trails.
- LSZH sheath
- Design for easy and quick installation
- Solid 23 AWG cable
- RoHS EC Directive 2002/95/EC compliant
Karakteristikker
Karakteristikker
Konstruksjonsegenskaper
Konstruksjonsegenskaper
Kabeltype
UTP
Ytre kappe
LSZH
Farge
Hvit
Bruksegenskaper
Bruksegenskaper
Driftstemperatur område
-20 ... 60 °C
Flammehemmende
IEC 60332-1
Temperaturområde under installasjon
0 ... 50 °C
