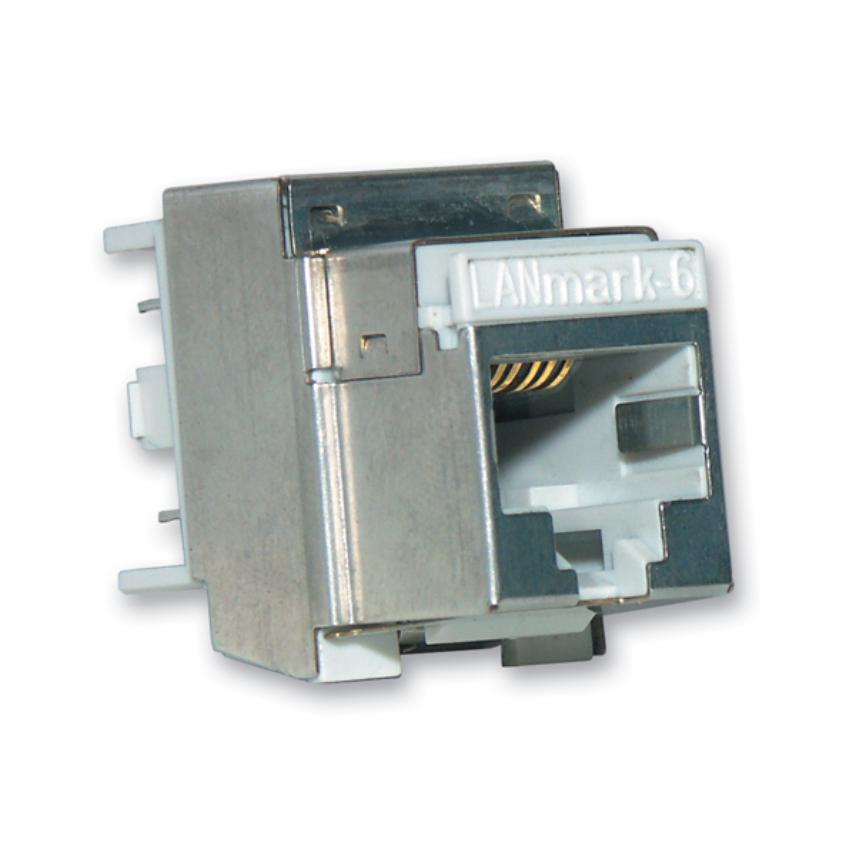

LANmark-6 Snap-In Konnektorer
LANmark-6 Snap-In Konnektorer
- Kategori 6 Snap-in Konnektor
- Tilgjengelig i uskjermet og skjermet versjon
- Rask og enkel avslutning uten punch-verktøy
- Kabling i henhold til fargekode T568B eller T568A
- Reterminerbar
- Flertrådet versjon tilgjengelig for konsolideringspunkt
- støtter POE Pluss-applikasjoner (15 watt per par)
- En adapter kan legges til for å passe til keystone-formatet
LANmark-6 Uskjerm Snap-in entr
Nexans art.nr. N420.660 - El.nr. 6903955
- Forpakning: Enhet
- Skjerm: Nei
LANmark-6 Uskjerm Snap-in entr ECO-24
Nexans art.nr. N420.660ECO24 - El.nr. 6903857
- Forpakning: Enhet
- Skjerm: Nei
LANmark-6 Uskjerm Snap-in fler
Nexans art.nr. N420.661 - El.nr. 6903956
- Forpakning: Enhet
- Skjerm: Nei
Beskrivelse
Beskrivelse
Standarder
-
ProductIEC 60603-7-4; IEC 60603-7-5; IEEE 802.3af (PoE); IEEE 802.3at (PoE+)
-
InternasjonalISO/IEC 11801
Application
LANmark-6 Evo Snap-In connectors are manufactured and tested to the latest Category 6 specifications defined in the International and American cabling standards and are designed to meet or exceed the quality and performance criteria needed to support all applications up to 250 MHz.
- 10 BASE-T Ethernet
- 100 BASE-T Fast Ethernet
- 1000 BASE-T Gigabit Ethernet
- 155 Mb ATM
- 622 Mb ATM
- 1.2 Gb ATM
- POE Plus (including IEC 60512-9-3 and IEC 60512-99-001)
- Future Class E applications
Design
LANmark-6 Evo Snap-In connectors are designed to match with LANmark-6 cable and patch cords and to complement all LANmark modular components, such as:
- Snap-In patch panels (fixed, sliding and angled) and Zone Distribution Boxes
- Snap-In outlet modules (UK, US, European and German style)
Performance
LANmark-6 Evo Snap-In connectors meet or exceed the requirements for Category 6 connecting hardware as described in ISO/IEC 11801, IEC 60603-7 and EIA/TIA 568-C.2.
Installation
The wire organiser guarantees fast and easy termination of the LANmark-6 Evo Snap-In connector without the need for a punchdown tool. An optional comfort tool (N420.567) can be used to increase the ease of installation.
A stranded version is available for CP to TO links.
Guarantees
The LANmark-6 Evo Snap-In performance is guaranteed to meet or exceed the requirements of the above mentioned standards.
Traceability codes on both connector and packaging ensure quality validation.
Installations with LANmark-6 cable and connectivity are qualified for a 25 year full system warranty, which includes Parts, Installation, Channel Performance and Application Support, as described in the Nexans Certified System Warranty.
Electrical performance
Mechanical and electrical characteristics
Karakteristikker
Karakteristikker
Konstruksjonsegenskaper
Konstruksjonsegenskaper
