QENE 2,5 mm, Optical Fibre Cable - Duct Cable

Products

G24-9 QENE

Nexans ref. 10566786 - Country ref. 1007442

  • Packaging: Drum (2000m)
  • Number of optical fibres: 24
  • Nominal outer diameter: 17.5 mm



G48-9 QENE

Nexans ref. 10566787 - Country ref. 1007443

  • Packaging: Drum (2000m)
  • Number of optical fibres: 48
  • Nominal outer diameter: 17.5 mm



G96-9 QENE

Nexans ref. 10566788 - Country ref. 1007444

  • Packaging: Drum (2000m)
  • Number of optical fibres: 96
  • Nominal outer diameter: 17.5 mm



G144-9 QENE

Nexans ref. 10566789 - Country ref. 1007445

  • Packaging: Drum (2000m)
  • Number of optical fibres: 144
  • Nominal outer diameter: 21.2 mm



Description

Description

Standards

  • International
    EN 187000; EN 187100; EN 187101; EN 188000; EN 188100; IEC 60793; IEC 60794; ITU-T Rec. G.650; ITU-T Rec. G.652
  • National
    SS 424 14 37

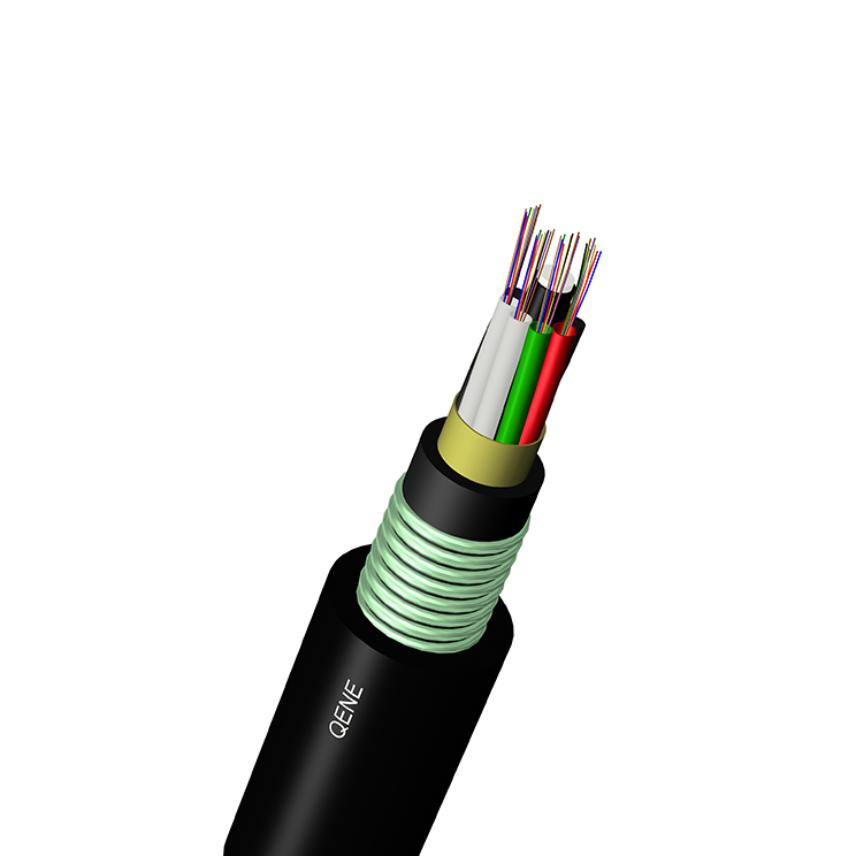

The cable type is longitudinally water-blocked and intended for outdoor use (in ducts). The design can incorporate 12 to 432 fibres in loose tubes. The individually coloured fibres are tubed in groups of maximum 12, and stranded onto a central dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of water-swellable materials and sheathed with double layer halogenfree black polyethylene. In between the sheaths there is a corrugated steel tape for armour and rodent protection.

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Construction type
Loose Tube
Fiber optic type
SM (G.652D)
Outer sheath
HDPE
Sheath colour
Black
Material used for longitudinal water tightness
Swellable tape
Halogen free
Yes
Metal free
No

Usage characteristics

Usage characteristics

Installation type
Outdoor - Direct burial
Operating temperature, range
-40 ... 70 °C
Ambient installation temperature, range
-15 ... 60 °C
Storage temperature, range
-40 ... 70 °C

Resources

Resources

Documentation

Selling & delivery Information

The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
