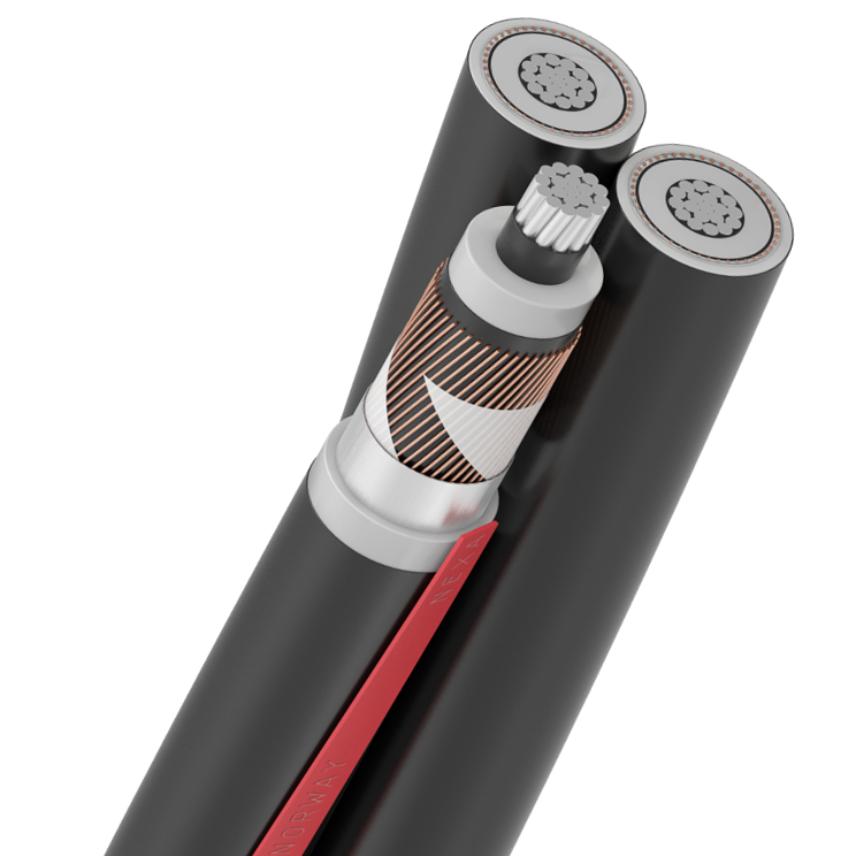

TSLI 24kV three cores with red marking stripe

Products

TSLI 24kV 3x1x150A M

Nexans ref. 10569681 - Country ref. 1087814

  • Packaging: Drum (500m)
  • Approximate weight: 3.61 kg/m
  • Diameter over insulation: 25.4 mm
  • Nominal outer diameter: 72.6 mm
  • Perm. current rating buried 15°C - trefoil formation: 340 A
  • Maximum Pulling Tension: 13.5 kN



TSLI 24kV 3x1x95A M

Nexans ref. 10557029 - Country ref. 1087861

  • Packaging: Drum (m)
  • Approximate weight: 2.89 kg/m
  • Diameter over insulation: 22.7 mm
  • Nominal outer diameter: 65.9 mm
  • Perm. current rating buried 15°C - trefoil formation: 265 A
  • Maximum Pulling Tension: 8.55 kN



Description

Description

User benefits:

Diffusion free high voltage cable

Avoids therefore growth of watertrees in the XLPE insulation which increases the lifetime.



Usage:

Indoor

Tunnels

Industrial installations

Outdoor

Surroundings which require a fire retardent cable

Fire properties:

Fire retardent

Halogenfree



Cable marking:

NEXANS NS TSLI XX kV 1 x mm²/mm² MONTH YEAR

Lifemark



Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Aluminum
Conductor shape
Circular compacted
Material used for longitudinal water tightness
Swelling powder
Insulation
Extruded XLPE
Material of the external semi-conductor
Extruded
Screen
Copper wire
Armour type
Aluminium foil
Radial waterproof
Yes
Outer sheath
Fire-retardant
Halogen free
Yes
Conductor flexibility
Stranded class 2
