QXXE Ultimate™
QXXE Ultimate™
Type QXXE Ultimate™ is a loose tube fibre optical cable. The cable type is intended for use in regional, urban, and area property networks.
Read moreG192/T24 G657A1/200µm QXXE Ultimate™
Nexans ref. 10568004 - Country ref. 1007434
- Packaging: Drum (m)
- Number of tube layer 1: 8
- Number of optical fibres, range: 12 ... 288
- Number of optical fibres: 192
- Max. number of fibres per tube: 24
- Tube diameter: 1.5 mm
- Maximum pulling force by laying: 2 kN
- Maximum permanent tensile load: 0.5 kN
- Impact resistance (EN 187 000): 2 J
G288/T24 G657A1/200µm QXXE Ultimate™
Nexans ref. 10568005 - Country ref. 1007435
- Packaging: Drum (m)
- Number of tube layer 1: 12
- Number of optical fibres, range: 12 ... 288
- Number of optical fibres: 288
- Max. number of fibres per tube: 24
- Tube diameter: 1.5 mm
- Maximum pulling force by laying: 2 kN
- Maximum permanent tensile load: 0.5 kN
- Impact resistance (EN 187 000): 2 J
G12/T12 G652D/G657A1 QXXE Ultimate™
Nexans ref. 10571943 - Country ref. 1007643
- Packaging: Drum (m)
- Number of tube layer 1: 6
- Number of optical fibres, range: 2 ... 288
- Number of optical fibres: 12
- Max. number of fibres per tube: 12
- Tube diameter: 1.6 mm
- Maximum pulling force by laying: 0.6 kN
- Maximum permanent tensile load: 0.25 kN
- Impact resistance (EN 187 000): 5 J
G24/T12 G652D/G657A1 QXXE Ultimate™
Nexans ref. 10571944 - Country ref. 1007644
- Packaging: Drum (m)
- Number of tube layer 1: 6
- Number of optical fibres, range: 2 ... 288
- Number of optical fibres: 24
- Max. number of fibres per tube: 12
- Tube diameter: 1.6 mm
- Maximum pulling force by laying: 0.6 kN
- Maximum permanent tensile load: 0.25 kN
- Impact resistance (EN 187 000): 5 J
G48/T12 G652D/G657A1 QXXE Ultimate™
Nexans ref. 10571945 - Country ref. 1007645
- Packaging: Drum (m)
- Number of tube layer 1: 6
- Number of optical fibres, range: 2 ... 288
- Number of optical fibres: 48
- Max. number of fibres per tube: 12
- Tube diameter: 1.6 mm
- Maximum pulling force by laying: 0.6 kN
- Maximum permanent tensile load: 0.25 kN
- Impact resistance (EN 187 000): 5 J
G72/T12 G652D/G657A1 QXXE Ultimate™
Nexans ref. 10571946 - Country ref. 1007646
- Packaging: Drum (m)
- Number of tube layer 1: 6
- Number of optical fibres, range: 2 ... 288
- Number of optical fibres: 72
- Max. number of fibres per tube: 12
- Tube diameter: 1.6 mm
- Maximum pulling force by laying: 0.6 kN
- Maximum permanent tensile load: 0.25 kN
- Impact resistance (EN 187 000): 5 J
G96/T12 G652D/G657A1 QXXE Ultimate™
Nexans ref. 10571947 - Country ref. 1007647
- Packaging: Drum (m)
- Number of tube layer 1: 8
- Number of optical fibres, range: 2 ... 288
- Number of optical fibres: 96
- Max. number of fibres per tube: 12
- Tube diameter: 1.6 mm
- Maximum pulling force by laying: 0.6 kN
- Maximum permanent tensile load: 0.25 kN
- Impact resistance (EN 187 000): 5 J
G144/T24 G652D/G657A1 QXXE Ultimate™
Nexans ref. 10571948 - Country ref. 1007648
- Packaging: Drum (m)
- Number of tube layer 1: 6
- Number of optical fibres, range: 2 ... 288
- Number of optical fibres: 144
- Max. number of fibres per tube: 24
- Tube diameter: 1.9 mm
- Maximum pulling force by laying: 1 kN
- Maximum permanent tensile load: 0.5 kN
- Impact resistance (EN 187 000): 5 J
G192/T24 G652D/G657A1 QXXE Ultimate™
Nexans ref. 10571949 - Country ref. 1007649
- Packaging: Drum (m)
- Number of tube layer 1: 8
- Number of optical fibres, range: 2 ... 288
- Number of optical fibres: 192
- Max. number of fibres per tube: 24
- Tube diameter: 1.9 mm
- Maximum pulling force by laying: 1 kN
- Maximum permanent tensile load: 0.5 kN
- Impact resistance (EN 187 000): 5 J
G288/T24 G652D/G657A1 QXXE Ultimate™
Nexans ref. 10571980 - Country ref. 1007650
- Packaging: Drum (m)
- Number of tube layer 1: 12
- Number of optical fibres, range: 2 ... 288
- Number of optical fibres: 288
- Max. number of fibres per tube: 24
- Tube diameter: 2.1 mm
- Maximum pulling force by laying: 1 kN
- Maximum permanent tensile load: 0.5 kN
- Impact resistance (EN 187 000): 5 J
Description
Description
Standards
-
InternationalIEC 60793; IEC 60794; ITU-T Rec. G.650; ITU-T Rec. G.652

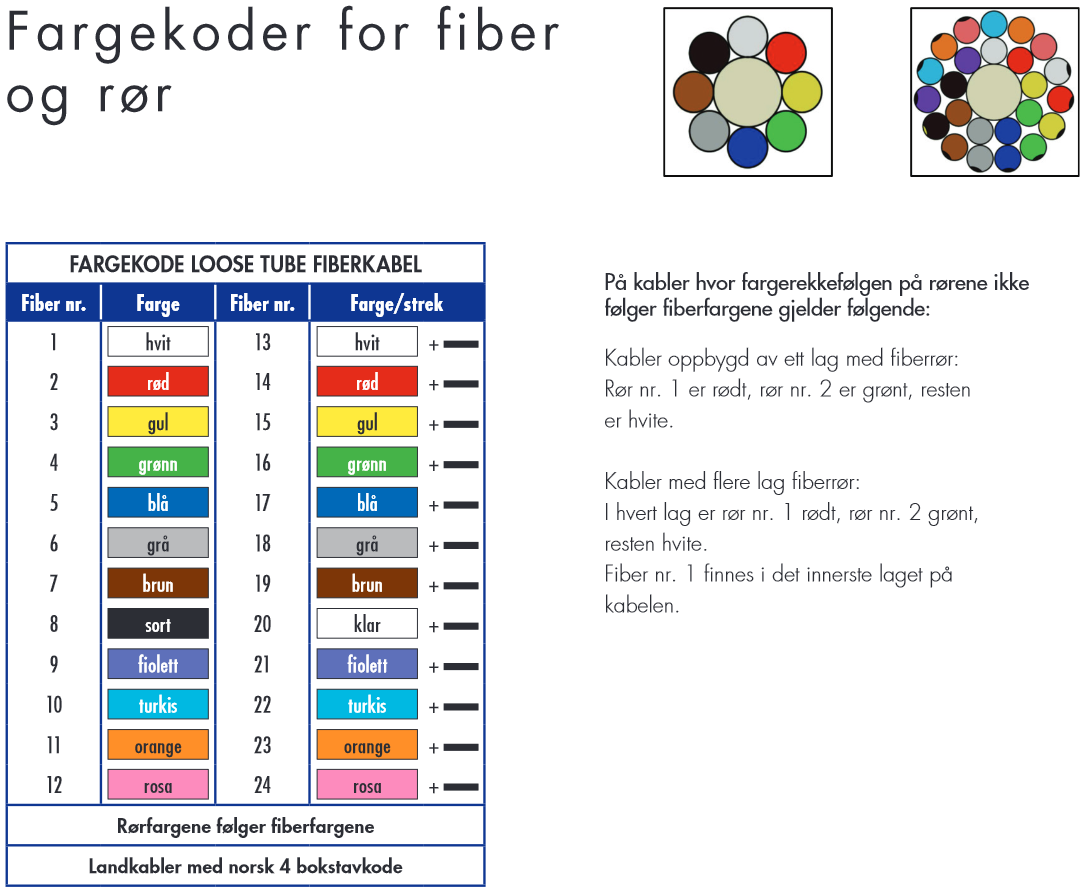

The cable type is longitudinally water-blocked and intended for outdoor use (in ducts). The design can incorporate 12 to 288 fibres in loose tubes. The individually coloured fibres are tubed in groups of maximum 12 or 24 and stranded onto a central dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of swellable yarn and sheathed with halogen-free black polyethylene.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
