QXXE 2,5 mm, Optical Fibre Cable - Duct Cable


G12-9 QXXE

Nexans ref. 10557147 - Country ref. 1007621

  • Packaging: Drum (m)
  • Nominal outer diameter: 11.2 mm


G24-9 QXXE

Nexans ref. 10557148 - Country ref. 1007622

  • Packaging: Drum (m)
  • Nominal outer diameter: 11.2 mm


G48-9 QXXE

Nexans ref. 10557149 - Country ref. 1007623

  • Packaging: Drum (m)
  • Nominal outer diameter: 11.2 mm


G96-9 QXXE

Nexans ref. 10557150 - Country ref. 1007624

  • Packaging: Drum (m)
  • Nominal outer diameter: 12.8 mm


G144-9 QXXE

Nexans ref. 10557151 - Country ref. 1007625

  • Packaging: Drum (m)
  • Nominal outer diameter: 16.3 mm


G192-9 QXXE

Nexans ref. 10557152 - Country ref. 1007626

  • Packaging: Drum (m)
  • Nominal outer diameter: 16.7 mm


G288-9 QXXE

Nexans ref. 10557153 - Country ref. 1007627

  • Packaging: Drum (m)
  • Nominal outer diameter: 19.3 mm





  • International
    EN 187000; EN 187100; EN 187101; EN 188000; EN 188100; IEC 60793; IEC 60794; ITU-T Rec. G.650; ITU-T Rec. G.652
  • National
    SS 424 14 37

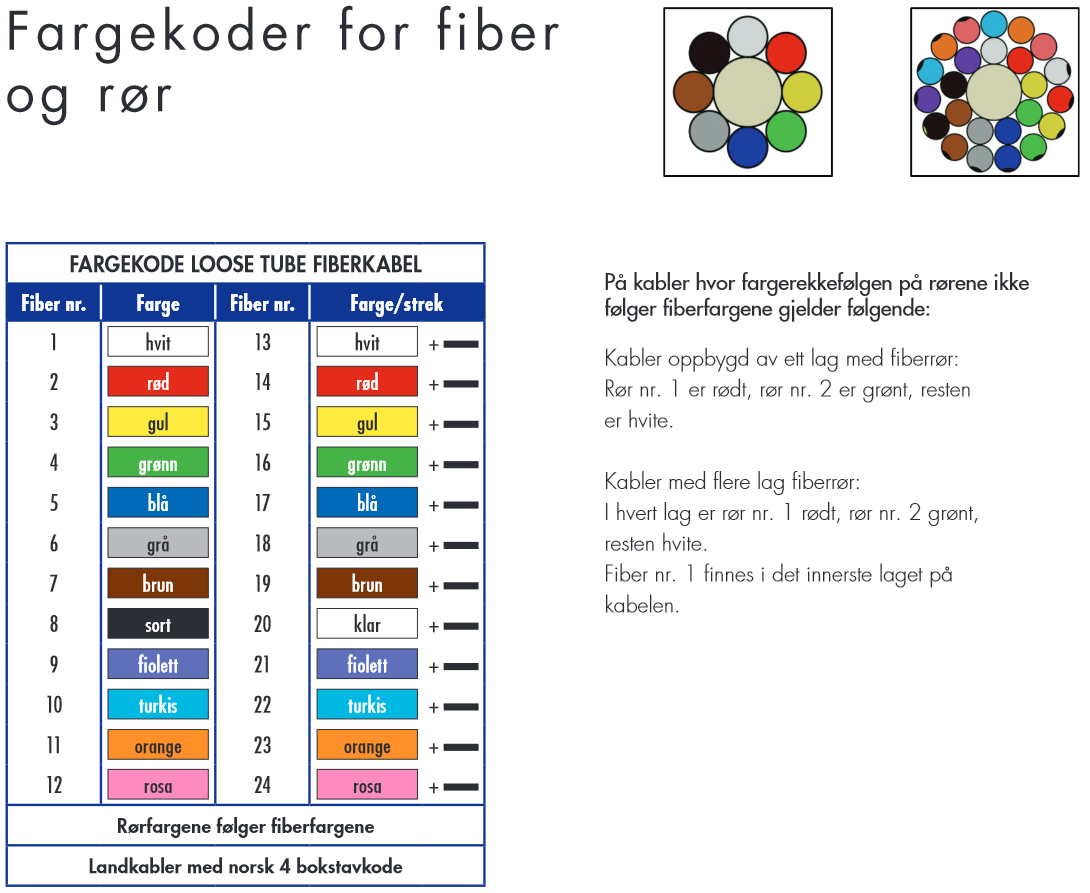

The cable type is longitudinally water-blocked and intended for outdoor use (in ducts). The design can incorporate 12 to 288 fibres in loose tubes. The individually coloured fibres are tubed in groups of maximum 12, and stranded onto a central dielectric fibre reinforced strength member (FRP). The cable type is longitudinal water-blocked through the use of water-swellable materials and sheathed with halogenfree black polyethylene.



Construction characteristics

Construction characteristics

Construction type
Loose Tube
Fiber optic type
SM (G.652D)
Type of secondary protection
Loose tube
Reinforcement members material type
Fiber glass
Outer sheath
Sheath colour
Material used for longitudinal water tightness
Swellable tape
Halogen free
Metal free

Dimensional characteristics

Dimensional characteristics

Number of optical fibres, range

Usage characteristics

Usage characteristics

Installation type
Outdoor - Duct
Operating temperature, range
-40 ... 70 °C
Ambient installation temperature, range
-15 ... 60 °C
Storage temperature, range
-40 ... 70 °C



Selling & delivery Information

The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
