H07V2-K 1,5 (RK 90°C) 450/750V
H07V2-K 1,5 (RK 90°C) 450/750V
The cable is intended to be used for inside couplings in switch cabinet boxes and similar applications.
Read more- Nexans ref. : 10261591
- Country ref. : 1037346
- EAN : 7330000014848
Description
Description
Standards
-
ProductEN 50525-2-31
DESCRIPTION

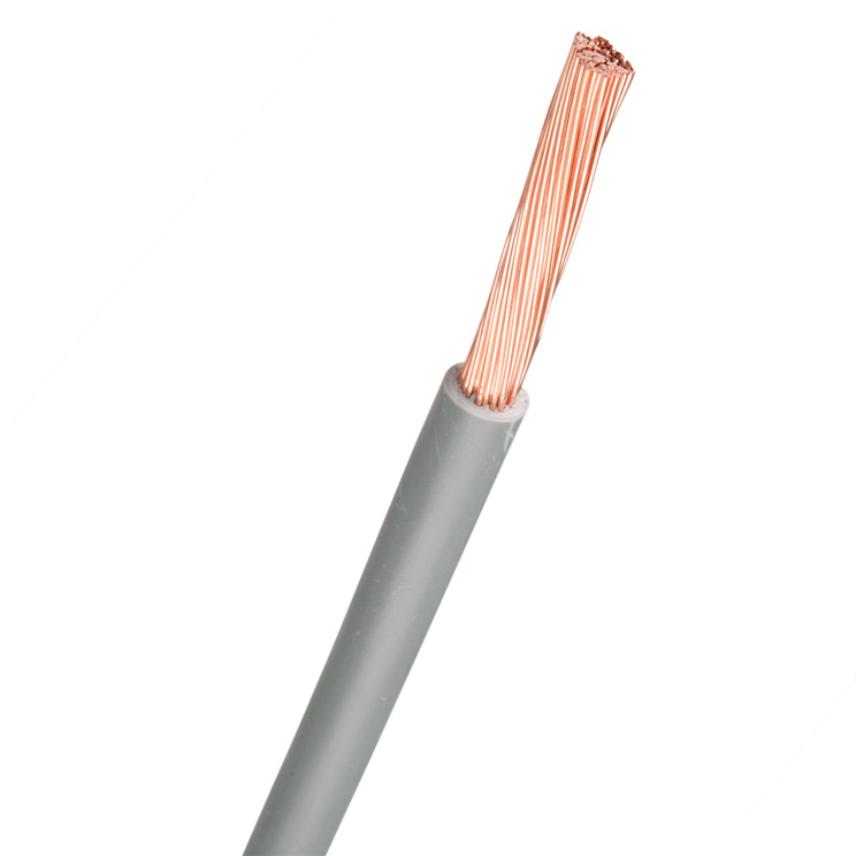

H07V2-K is a lead free, PVC insulated, connecting cable with one circular, multi stranded copper conductor. The cable is designed according to EN 50525-2-31. The conductor has resistance according to EN 60228 class 5. The insulation is marked ”NEXANS GS H07V2-K 0,75 SEMKO (HAR) E". H07V2-K meets the requirements for CPR class E.
Certification
Certifeid by INTERTEK SEMKO.
Quality system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
H07V2-K will be delivered in lengths of 100 to 500 m. The drum is marked with manufacturer, type of cable and length.
Declaration of Performance
- Declaration of Performance n� : 1000222-SEGR
- Certification Date : 8/22/17
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Eca
