MILLICLICK plate 8x590x790mm

Beskrivelse

Beskrivelse

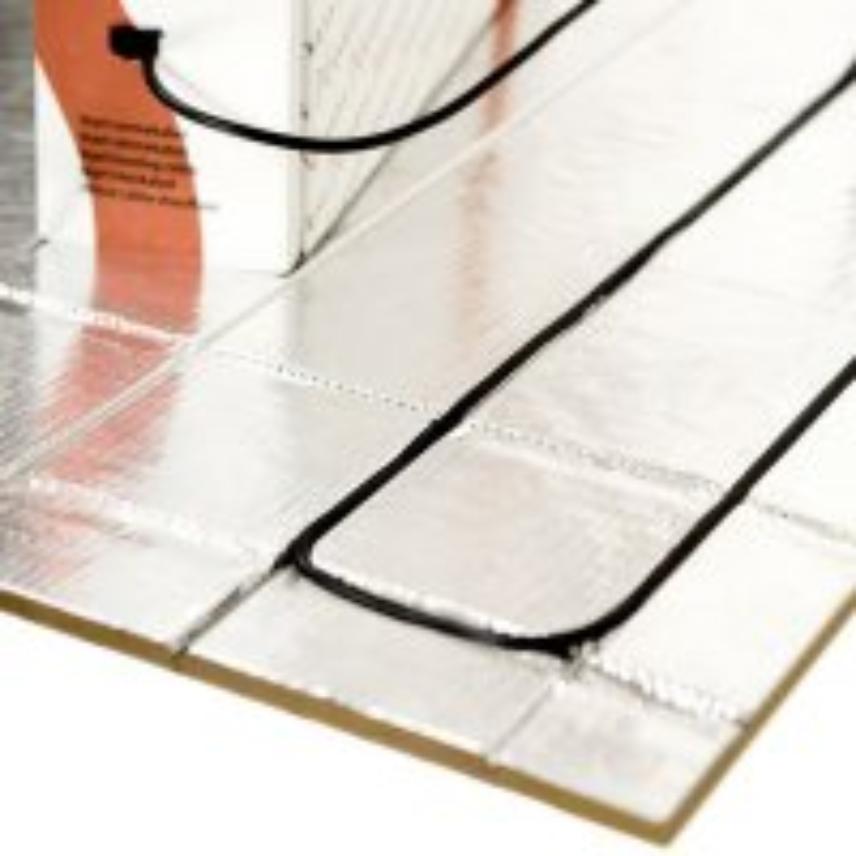

Underlaying boards for parquet/laminate floors providing insulation against impact- and airborne sounds, and slots for the MILLICABLE™ heating cable. The slots have a 10 cm C-C spacing, thus providing an area output of 60 W/m² with the MILLICABLE™ installed in them. The boards are covered with an aluminium foil to ensure an even heat distribution throughout the floor.

LxWxT:  790x590x8 mm

Sound insulation:  19 dB

U-value:  6,25 W/(m²K)

Compression Strength:
NS-EN 16354:2018     194 kPa

NS-EN 826:2013     300 kPa

Brief installation procedure:

1. Install MILLICLICK™ on the sub floor.
2. Press
MILLICABLE™ into the slots on the boards.
3. Roll out parquet underlay.
4. Install floor covering - Laminate or parquet. (Floating on top, no need for fixing).



MILLICLICK™ comes in packages containing 10 boards, thus covering 4,66 m².

MILLICLICK™ is environmentally clean with no harmful additives.

Karakteristikker

Karakteristikker

Dimensjonsegenskaper

Dimensjonsegenskaper

Lengde
- mm
Vekt pr. stk. (ca.)
- kg
