The Plug&Play system consists of 3 subcomponents: the Plug&Play modules, the MTP-MTP* Pre-Terms and the Plug&Play patch panel.

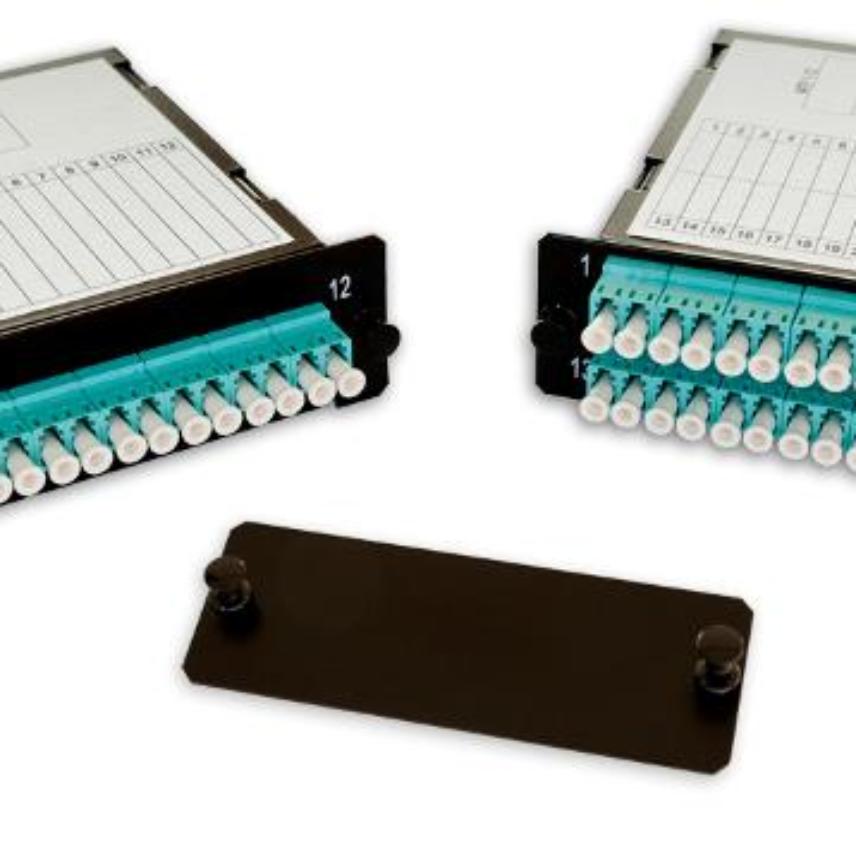

The central component is the pre-installed Plug&Play module. The MTP connector at the back of the module connects at once 12 fibres to the MTP-MTP Pre-Term. Inside the module the fibres are spread out towards the LC adaptors at the front.




Plug&Play Module Characteristics



Up to 4 Plug&Play modules can be installed quickly into the Plug&Play patch panel with push rivets. With these 4 modules a medium density of 48 LC or a high density of 96 LC connections within 1U can be achieved.

The insertion loss for the multimode LANmark-OF Plug&Play low loss module is 0,6 dB measured according to standard IEC 61300-3-45. The minimum return loss for a multimode MTP connection is 20 dB measured according to IEC 61300-3-6.

The insertion loss for the singelmode LANmark-OF Plug&Play module is 0,9 dB measured according to standard IEC 61300-3-45. The minimum return loss for a singlemode MTP connection is 45 dB measured according to IEC 61300-3-6.

The modules are available with OM4 fibres for multimode and are backwards compatible with OM3 fibres.  The LC multimode adaptors are aqua.  The singlemode module has G652D fibres for OS2 compatibility. The LC singlemode adaptors are blue.

The wiring inside the module is straight. This allows to maintain polarity in the MPO-link together with the pair-wise fibre flip inside the MPO-MPO Pre-Term according to method C from standard TIA 568-B-1-7-2007.

Since all connectivity is factory installed and factory tested installation times are short for a quick deployment or for frequent changes.

The Plug&Play module has standard pinned (male) connectors. This matches perfectly with the non-pinned (female) connectors of the MTP-MTP Pre-Term.


* MTP is a trade name of US Conec
