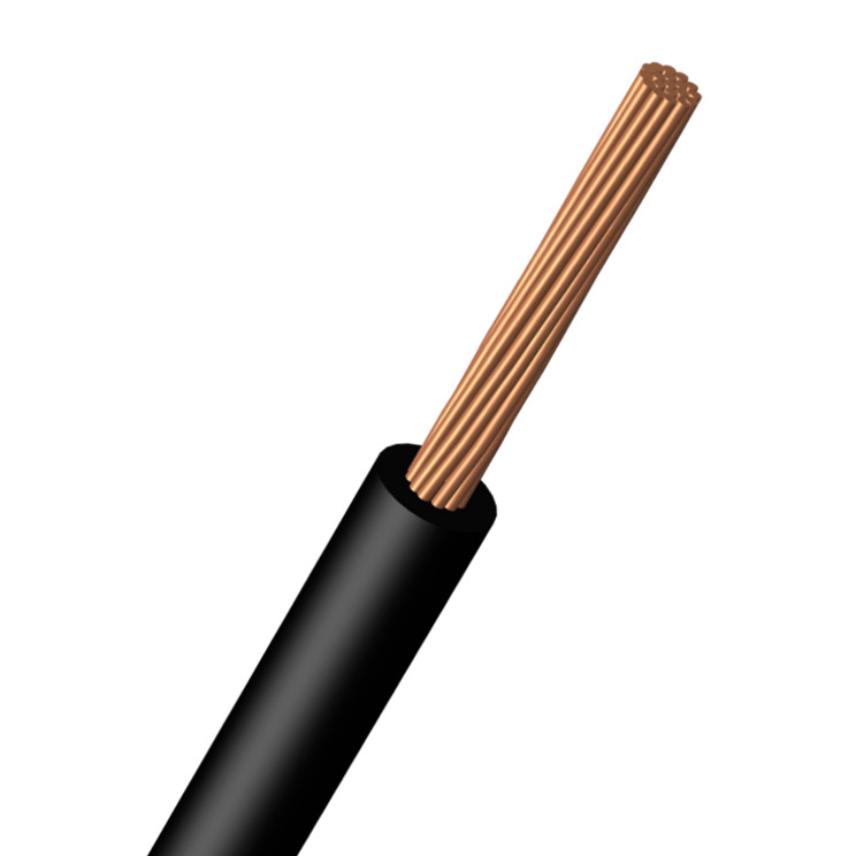

FX SPESIAL 1x25 mm²Cu
FX SPESIAL 1x25 mm²Cu
1 kV interconnection cable
Read more- Nexans ref. : 10041864
- Country ref. : 1017565
Description
Description
Standards
-
InternationalIEC 60228
1 kV interconnection cable
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Conductor shape
Circular compacted
Insulation
Extruded XLPE compound
Outer sheath
Conductor flexibility
Stranded class 2
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
25 mm²
Conductor diameter
6.0 mm
Average insulation thickness
2.0 mm
Diameter over insulation
10.0 mm
Average sheath thickness
- mm
Nominal outer diameter
10.0 mm
Approximate weight
0.35 kg/km
Number of cores
1
Electrical characteristics
Electrical characteristics
Maximum operating voltage
24 kV
Permissible short circuit current
3500 A
Max. DC resistance of the conductor at 20°C
0.727 Ohm/km
Perm current rating in air 30°C
182 A
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Maximum operating temperature
90 °C
Short-circuit max. conductor temperature
250 °C
Minimum installation temperature
-10 °C
Bending factor when laying
6 (xD)
Length
1000 m
