Description
Description
Standards
-
InternationalIEC 60228

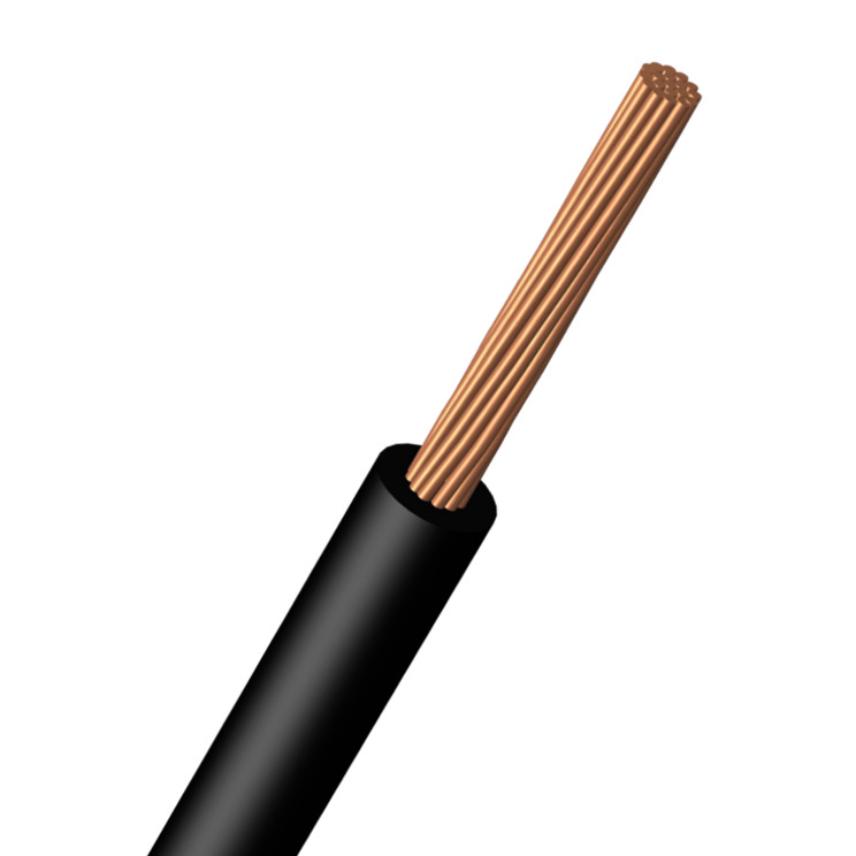

1 kV interconnection cable
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Copper
Conductor flexibility
Stranded class 2
Dimensional characteristics
Dimensional characteristics
Conductor cross-section
25 mm²
Conductor diameter
6.0 mm
Diameter over insulation
10.0 mm
Nominal outer diameter
10.0 mm
Approximate weight
0.35 kg/km
Number of cores
1
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
0.727 Ohm/km
Perm current rating in air 30°C
182 A
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
