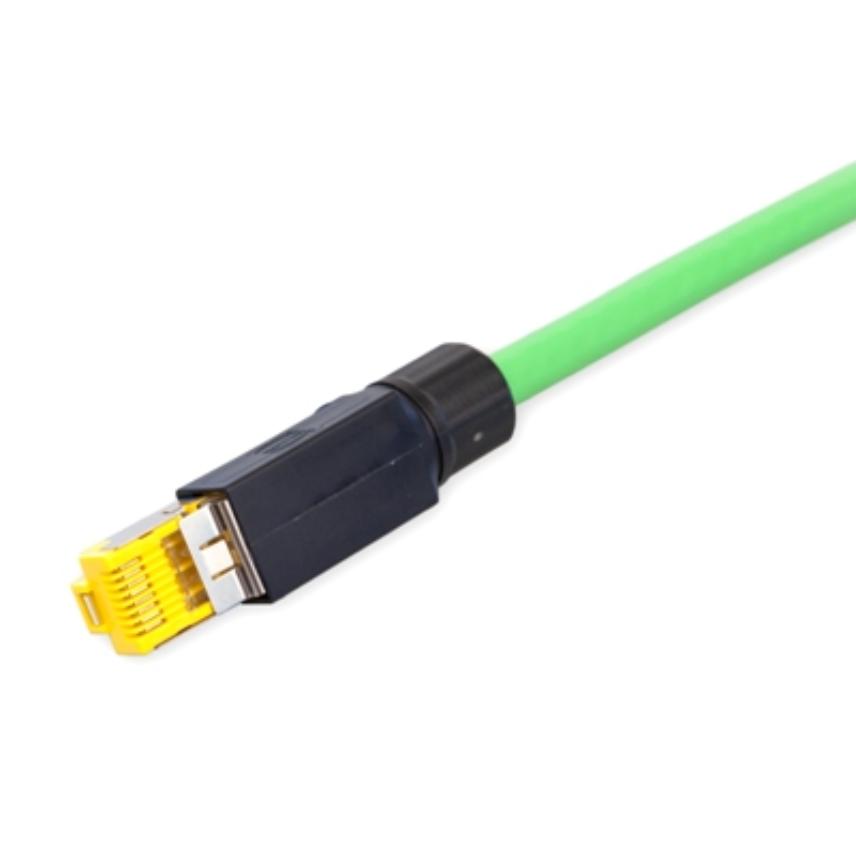

LANmark Industry Field Terminable Plug Cat 6A
LANmark Industry Field Terminable Plug Cat 6A
- Robust industrial design
- Fully shielded
- Field terminable using IDC technology
- Solid and stranded conductors 27-22 AWG
- Primary insulation up to 1.5mm
- Cable diameter from 4.5mm to 9mm
- IP 20 Protection
- Category 6A perfomance
- Temperature range -40 to 70°C
- Rated for 750 mating cycles Read more
- Nexans ref. : N42i.900
- Country ref. : 6916978
Description
Description
Standards
-
InternationalEN 50173-3; ISO/IEC 24702
LANmark field terminable plugs are specifically designed to provide a quick, simple and high quality method of termination on-site. They require no special tools and are compatible with all cables in the LANmark range.
The Category 6A plug is designed for use with all Snap-In connectors and is particularly suitable for use with the LANmark Industry DIN-rail connectors.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Material
Plastic
Dimensional characteristics
Dimensional characteristics
External diameter of the cable "D", range
4.5 ... 9 mm
Usage characteristics
Usage characteristics
Category
Cat. 6A
Maximum operating temperature
70 °C
Minimum operating temperature
-40 °C
Resistance to vibrations
High
