TFXP-O 1kV (8 tall)

TFXP-O 1kV 4G25mm²A

TFXP-O 1kV 4G25mm²A To be removed

Environmental data

3.94 t eq. CO2
Global carbon footprint

TFXP-O 1kV 4G25mm²A

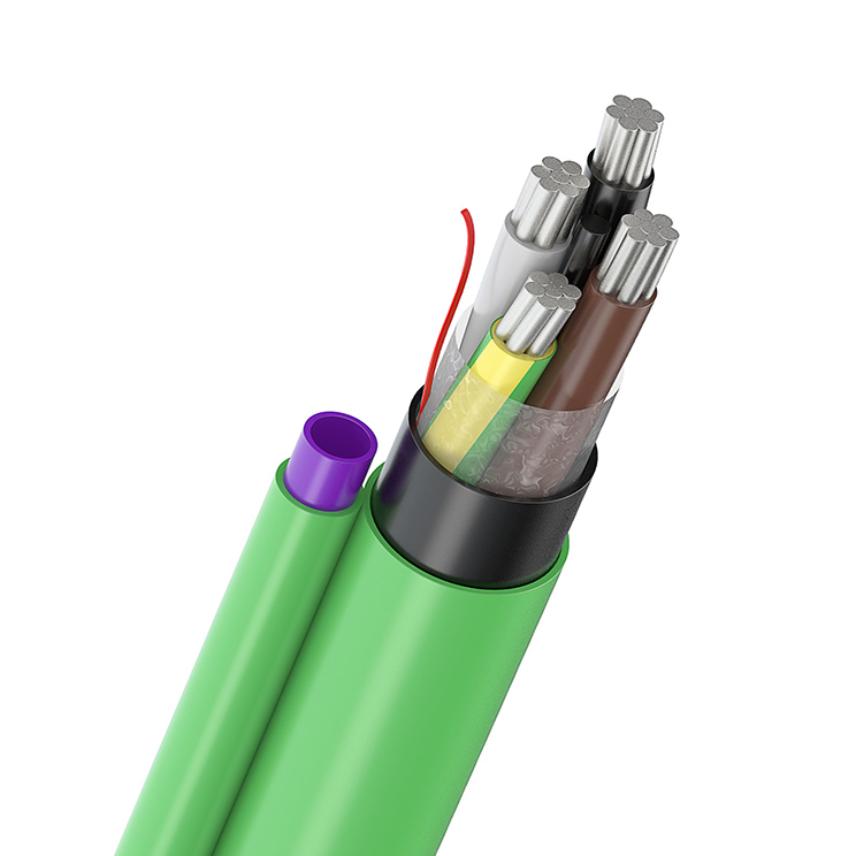

TFXP-O has XLPE-insulated aluminium conductors and tube for future installation of optical cable

Read more
  • Nexans ref. : 10147869
  • Country ref. : 1017569
  • EAN : 7330000055551
Download all documents
Download all documents
Contact us

Description

Description

Standards

  • Product
    HD 603.5M
  • Test
    IEC 60332-1

User benefits:

The cable is specially devoloped for low temperature conditions. It is used as a distribution cable for houses, and has an outer tube for future installation of optical cable. Fibre optic microcables as B-Lite Green could be used in any power cable with fibre tube or in standard cableway of microducts.

Installation:

  • Underground
  • Outdoor


Usage

  • Energy distribution


Marking

NEXANS GS TFXP-O n x mm2 1kV YEAR MONTH

Conductor marking/colour code

Black-Brown-Grey-Green/Yellow

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Conductor material
Aluminum
Conductor shape
Circular compacted
Insulation
XLPE (chemical)
With Green/Yellow core
Yes
Material of filler / inner sheath
PE
Outer sheath
PVC
Sheath colour
Green
Conductor flexibility
Stranded class 2

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
25 mm²
Conductor diameter
6.0 mm
Sector-shaped heigth
- mm
Sector-shaped width
- mm
Number of cores
4
Nominal outer diameter
25.0 mm
Tube diameter
8 mm
Inner diameter
4.5 mm
Height
37.6 mm
Approximate weight
0.68 kg/m

Electrical characteristics

Electrical characteristics

Permissible current rating in open air
105 A
Permissible current rating when buried
125 A
Max. DC resistance of the conductor at 20°C
1.2 Ohm/km
Inductive reactance at 50Hz
0.082 Ohm/km
Nominal inductance
0.26 mH/km
Zero sequence reactance at 50HZ
0.33 Ohm/km
Zero sequence resistance at 20°C
4.8 Ohm/km
Capacity of phase cores approx.
0.09 µF / km
Permissible short circuit current conductor 1s
2.2 kA
Rated Voltage Uo/U (Um)
0,6/1 kV

Mechanical characteristics

Mechanical characteristics

Maximum Pulling Tension
3 kN
Minimum repeated bending diameter
300 mm

Usage characteristics

Usage characteristics

Packaging
NX14
Length
1000 m
Maximum operating temperature
90 °C
Short-circuit max. conductor temperature
250 °C
Minimum installation temperature
-10 °C
Bending factor when laying
6 (xD)
Flame retardant
IEC 60332-1
U.V resistance
Yes

Resources

Resources

Documentation

PEP pdf — 4.3 MB
Download
TFXP-O 1kV 4G25mm²A

TFXP-O 1kV 4G25mm²A

Nexans ref. : 10147869
Country ref. : 1017569
EAN : 7330000055551
PEP : NXNS-00103-V01.01

Global Carbon Footprint
3.94 t eq. CO2
  • Amount of CO2 emitted Cradle to Gate phase (raw material collection and manufacturing), for the production of 1 km of cable.
