Transition joint TXRA/TSLF 24kV 95-240/95-240
Transition joint TXRA/TSLF 24kV 95-240/95-240

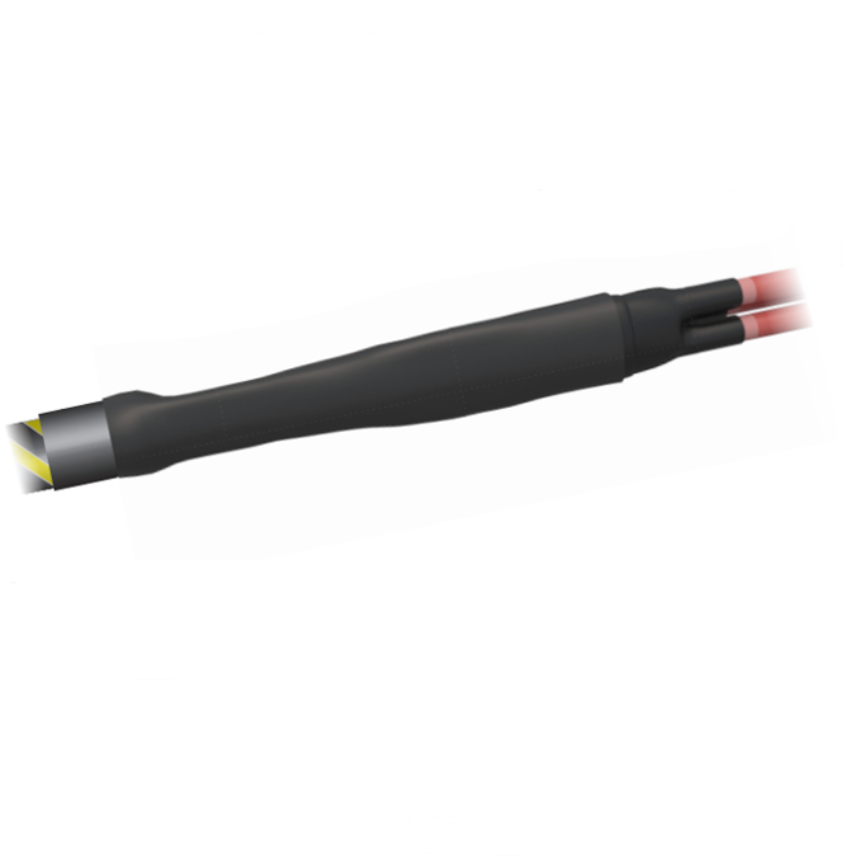

Transition joint for subsea cable to ground cable 24 kV 95-240
Read more- Nexans ref. : 10575215
- Country ref. : 1017516
Description
Description
Complete joint for subesea cable without screen (TXRA/TXRE etc.) to ground cable (TSLF/TSLE/TSLI etc.). Contains all necessary components for handling the armour and mastic filling etc. Delivered with mechanical connectors.
New Free Section - 101770
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Connector type
-
Dimensional characteristics
Dimensional characteristics
Conductor cross-section, range
95 ... 240 mm²
Length
1200 mm
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
12.7 / 22 (24) kV
