N-LINE IXLI Easy™
N-LINE IXLI Easy™
N-LINE®
Halogen-free corrugated installation PP conduit. IXLI Easy is a halogen free, HFFR insulated house wiring cable. The cable is made of low friction insulation material and solid wires.
Read moreN-LINE IXLI EASY 2x1,5/1,5. 16-100 krt. NEW
Nexans ref. 10579022 - Country ref. 1092595
- Packaging: Box (100m)
- Approximate weight: 13.7 kg/100m
- Conductor cross-section: 1.5 mm²
- Conduit diameter: 16 mm
N-LINE IXLI EASY 2x2,5/2,5. 20-50 krt. NEW
Nexans ref. 10579023 - Country ref. 1092596
- Packaging: Box (50m)
- Approximate weight: 27.7 kg/100m
- Conductor cross-section: 2.5 mm²
- Conduit diameter: 20 mm
Description
Description
Standards
-
InternationalEN 50525-3-31; IEC 60332-1-2; IEC 60754; IEC 61034

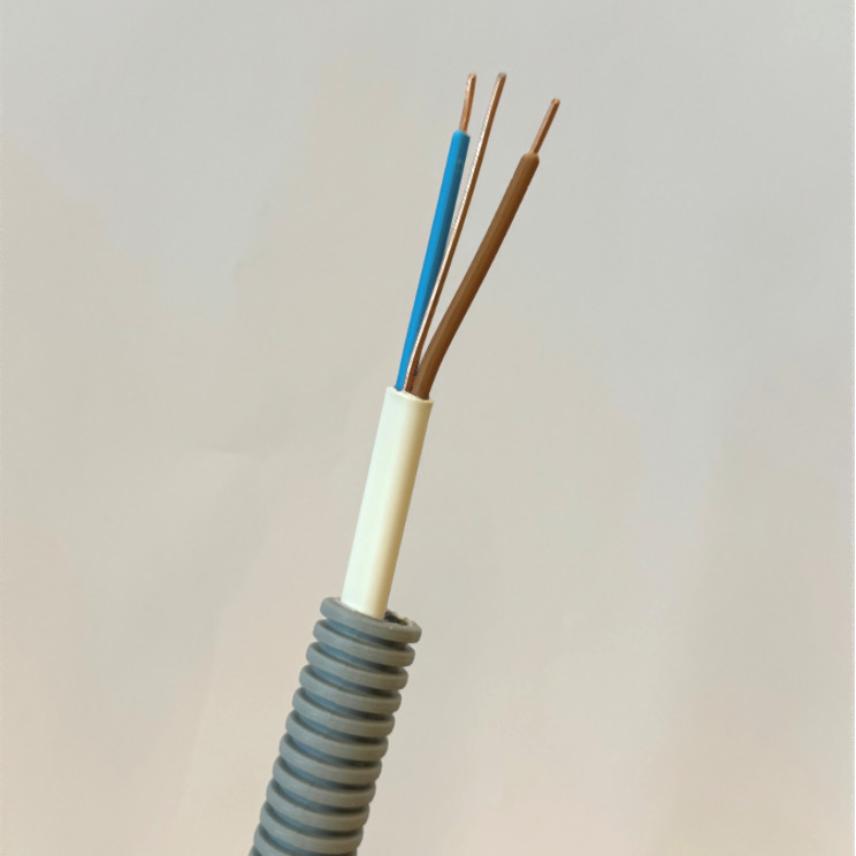

Pre-wired IXLI Easy™ in 16/20 mm corrugated conduits. IXLI Easy is a halogen-free, HFFR-insulated house installation cable with extremely low-friction material and a circular solid copper conductor. The cable meets fire requirements according to CPR class Dcas2d2a2. In the event of a fire, the cable emits no corrosive gases and has little smoke.
The halogen-free PP (polypropylene) corrugated conduits are intended for recessed installation, laying on cable ladders and casting in concrete. The product will be delivered in a flexible and user-friendly packaging, Cable Guy, that simplifies the installation work significantly, alternatively on the cable drum that fits in Nexans’ drum trolley, Cable Walker.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Resources
Resources
