FLAMEX® EN 50264-3-1 MM 1800V
FLAMEX® EN 50264-3-1 MM 1800V
FLAMEX
SHEATHED SINGLE CORE POWER CABLES
FLAMEX® EN 50264-3-1 1800V MM power cables are used for fixed and protected installations. This product range is recommended for narrow spaces where an optimal bending radius is required. FLAMEX® cables are designed to withstand tough working conditions (oil, ozone, temperature variation, etc.). 120°C conductor temperature is allowed for a 20,000 hours cumulative working time.
FLAMEX EN 50264-3-1 1800V 1.5 MM
Nexans ref. 10242506 - Country ref. 1026873
- Packaging: Spool (1000m)
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 5.7 mm
- Maximum outer diameter: 6.0 mm
- Approximate weight: 50 kg/km
FLAMEX EN 50264-3-1 1800V 2.5 MM
Nexans ref. 10230441 - Country ref. 1026874
- Packaging: Spool (1000m)
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 6.25 mm
- Maximum outer diameter: 6.55 mm
- Approximate weight: 60 kg/km
FLAMEX EN 50264-3-1 1800V 4 MM
Nexans ref. 10230442 - Country ref. 1026875
- Packaging: Spool (1000m)
- Conductor cross-section: 4 mm²
- Minimum outer diameter: 6.8 mm
- Maximum outer diameter: 7.2 mm
- Approximate weight: 80 kg/km
FLAMEX EN 50264-3-1 1800V 6 MM
Nexans ref. 10230443 - Country ref. 1026876
- Packaging: Spool (1000m)
- Conductor cross-section: 6 mm²
- Minimum outer diameter: 7.4 mm
- Maximum outer diameter: 7.8 mm
- Approximate weight: 100 kg/km
FLAMEX EN 50264-3-1 1800V 10 MM
Nexans ref. 10230494 - Country ref. 1026877
- Packaging: Spool (1000m)
- Conductor cross-section: 10 mm²
- Minimum outer diameter: 8.7 mm
- Maximum outer diameter: 9.3 mm
- Approximate weight: 160 kg/km
FLAMEX EN 50264-3-1 1800V 16 MM
Nexans ref. 10230495 - Country ref. 1026878
- Packaging: Spool (1000m)
- Conductor cross-section: 16 mm²
- Minimum outer diameter: 9.8 mm
- Maximum outer diameter: 10.6 mm
- Approximate weight: 230 kg/km
FLAMEX EN 50264-3-1 1800V 25 MM
Nexans ref. 10230496 - Country ref. 1026879
- Packaging: Spool (1000m)
- Conductor cross-section: 25 mm²
- Minimum outer diameter: 12.3 mm
- Maximum outer diameter: 13.1 mm
- Approximate weight: 340 kg/km
FLAMEX EN 50264-3-1 1800V 35 MM
Nexans ref. 10230497 - Country ref. 1026880
- Packaging: Spool (1000m)
- Conductor cross-section: 35 mm²
- Minimum outer diameter: 13.3 mm
- Maximum outer diameter: 14.1 mm
- Approximate weight: 450 kg/km
FLAMEX EN 50264-3-1 1800V 50 MM
Nexans ref. 10230498 - Country ref. 1026881
- Packaging: Spool (1000m)
- Conductor cross-section: 50 mm²
- Minimum outer diameter: 14.6 mm
- Maximum outer diameter: 15.6 mm
- Approximate weight: 600 kg/km
FLAMEX EN 50264-3-1 1800V 70 MM
Nexans ref. 10230499 - Country ref. 1026882
- Packaging: Spool (1000m)
- Conductor cross-section: 70 mm²
- Minimum outer diameter: 16.7 mm
- Maximum outer diameter: 17.7 mm
- Approximate weight: 820 kg/km
FLAMEX EN 50264-3-1 1800V 95 MM
Nexans ref. 10230500 - Country ref. 1026883
- Packaging: Spool (1000m)
- Conductor cross-section: 95 mm²
- Minimum outer diameter: 19.2 mm
- Maximum outer diameter: 20.2 mm
- Approximate weight: 1050 kg/km
FLAMEX EN 50264-3-1 1800V 120 MM
Nexans ref. 10230501 - Country ref. 1026884
- Packaging: Spool (1000m)
- Conductor cross-section: 120 mm²
- Minimum outer diameter: 20.8 mm
- Maximum outer diameter: 21.8 mm
- Approximate weight: 1300 kg/km
FLAMEX EN 50264-3-1 1800V 150 MM
Nexans ref. 10230502 - Country ref. 1026885
- Packaging: Spool (1000m)
- Conductor cross-section: 150 mm²
- Minimum outer diameter: 22.9 mm
- Maximum outer diameter: 23.9 mm
- Approximate weight: 1600 kg/km
FLAMEX EN 50264-3-1 1800V 185 MM
Nexans ref. 10230503 - Country ref. 1026886
- Packaging: Spool (1000m)
- Conductor cross-section: 185 mm²
- Minimum outer diameter: 25.5 mm
- Maximum outer diameter: 26.5 mm
- Approximate weight: 1950 kg/km
FLAMEX EN 50264-3-1 1800V 240 MM
Nexans ref. 10230504 - Country ref. 1026887
- Packaging: Spool (1000m)
- Conductor cross-section: 240 mm²
- Minimum outer diameter: 27.9 mm
- Maximum outer diameter: 29.3 mm
- Approximate weight: 2500 kg/km
Description
Description
Standards
-
ProductEN 50264-3-1; EN 45545 - HL3; IEC 60228

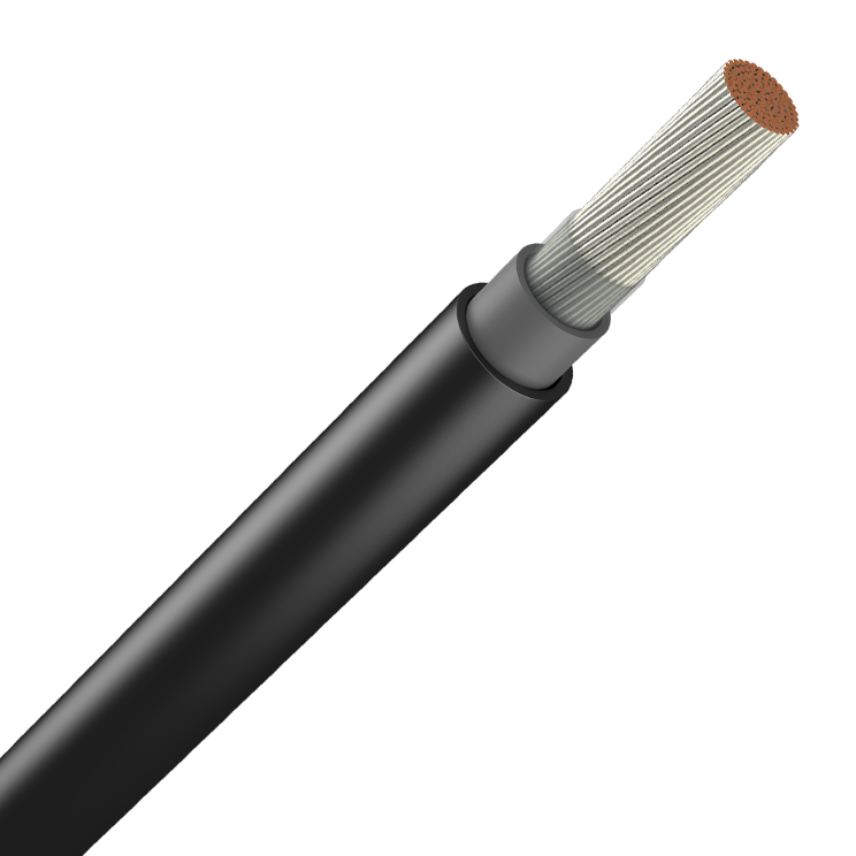

DESIGN
1. Conductor
Flexible stranded tinned copper, class 5 acc. to IEC 60228
Optional halogen-free separator tape
2. Insulation
Cross-linked compound type EI 109 acc. to 50264-1.
Colour: grey
3. Sheath
Cross-linked compound type EM 104 acc. to 50264-1
Oil, diesel, ozone and UV resistant
Colour: black
Example of marking: FLAMEX EN 50264-3-1 1800V (mm²) MM NSHXAFOE 1.8/3 kV I LYNXEO I WW-YYYY
GUIDE TO USE
- Cabling rules are given in EN 50343 and EN 50355
- Permissible current carrying capacities: values and calculation method are given in EN 50343
- Bending radius:
- Static use: 3 x outer cable diameter (5 x D if D>10mm)
- For installation and occasional movements: 6 x outer cable diameter
