SNOWMAT/300, heating cable mat 300W/m²
SNOWMAT/300, heating cable mat 300W/m²
SNOWMAT
Twin conductor heating cable mat for snow melting application
Read moreSNOWMAT 1200W 0,5x8m 4,0m²
Nexans ref. 10586228 - Country ref. 1037381
- Packaging: Box (Unit)
- Mat length: 8 m
- Mat area: 4 m²
- Approximate net weight: 3.4 kg
- Nominal element resistance: 44.1 Ohm
SNOWMAT 1500W 0,5x10m 5,0m²
Nexans ref. 10586229 - Country ref. 1037382
- Packaging: Box (Unit)
- Mat length: 10 m
- Mat area: 5 m²
- Approximate net weight: 4.0 kg
- Nominal element resistance: 35.3 Ohm
SNOWMAT 1800W 0,5x12m 6,0m²
Nexans ref. 10586230 - Country ref. 1037383
- Packaging: Box (Unit)
- Mat length: 12 m
- Mat area: 6 m²
- Approximate net weight: 4.5 kg
- Nominal element resistance: 29.4 Ohm
SNOWMAT 2100W 0,5x14m 7,0m²
Nexans ref. 10586231 - Country ref. 1037384
- Packaging: Box (Unit)
- Mat length: 14 m
- Mat area: 7 m²
- Approximate net weight: 5.1 kg
- Nominal element resistance: 25.2 Ohm
SNOWMAT 2400W 0,5x16m 8,0m²
Nexans ref. 10586232 - Country ref. 1037385
- Packaging: Box (Unit)
- Mat length: 16 m
- Mat area: 8 m²
- Approximate net weight: 5.7 kg
- Nominal element resistance: 22 Ohm
SNOWMAT 2700W 0,5x18m 9,0m²
Nexans ref. 10586233 - Country ref. 1037356
- Packaging: Box (Unit)
- Mat length: 18 m
- Mat area: 9 m²
- Approximate net weight: 6.5 kg
- Nominal element resistance: 19.6 Ohm
SNOWMAT 3000W 0,5x20m 10,0m²
Nexans ref. 10586234 - Country ref. 1037387
- Packaging: Box (Unit)
- Mat length: 20 m
- Mat area: 10 m²
- Approximate net weight: 7.2 kg
- Nominal element resistance: 17.6 Ohm
SNOWMAT 300W 0,5x2m 1,0m²
Nexans ref. 10586225 - Country ref. 1037369
- Packaging: Box (Unit)
- Mat length: 2 m
- Mat area: 1 m²
- Approximate net weight: 1.6 kg
- Nominal element resistance: 176.3 Ohm
SNOWMAT 3600W 0,5x24m 12,0m²
Nexans ref. 10586235 - Country ref. 1037388
- Packaging: Box (Unit)
- Mat length: 24 m
- Mat area: 12 m²
- Approximate net weight: 8.8 kg
- Nominal element resistance: 14.7 Ohm
SNOWMAT 4800W 0,5x32m 16,0m²
Nexans ref. 10586236 - Country ref. 1037389
- Packaging: Box (Unit)
- Mat length: 32 m
- Mat area: 16 m²
- Approximate net weight: 11.4 kg
- Nominal element resistance: 11 Ohm
SNOWMAT 600W 0,5x4m 2,0m²
Nexans ref. 10586226 - Country ref. 1037379
- Packaging: Box (Unit)
- Mat length: 4 m
- Mat area: 2 m²
- Approximate net weight: 2.1 kg
- Nominal element resistance: 88.2 Ohm
SNOWMAT 900W 0,5x6m 3,0m²
Nexans ref. 10586227 - Country ref. 1037380
- Packaging: Box (Unit)
- Mat length: 6 m
- Mat area: 3 m²
- Approximate net weight: 2.7 kg
- Nominal element resistance: 58.8 Ohm
Description
Description
Standards
-
ProductIEC 60800
-
TestIEC 60332-1
SNOWMAT is ideal for quick installation of snow and ice melting applications in outdoor areas such as driveways, courts etc. Can be installed in hot asphalt 160 °C (320 °F), concrete or flagstone and sand.

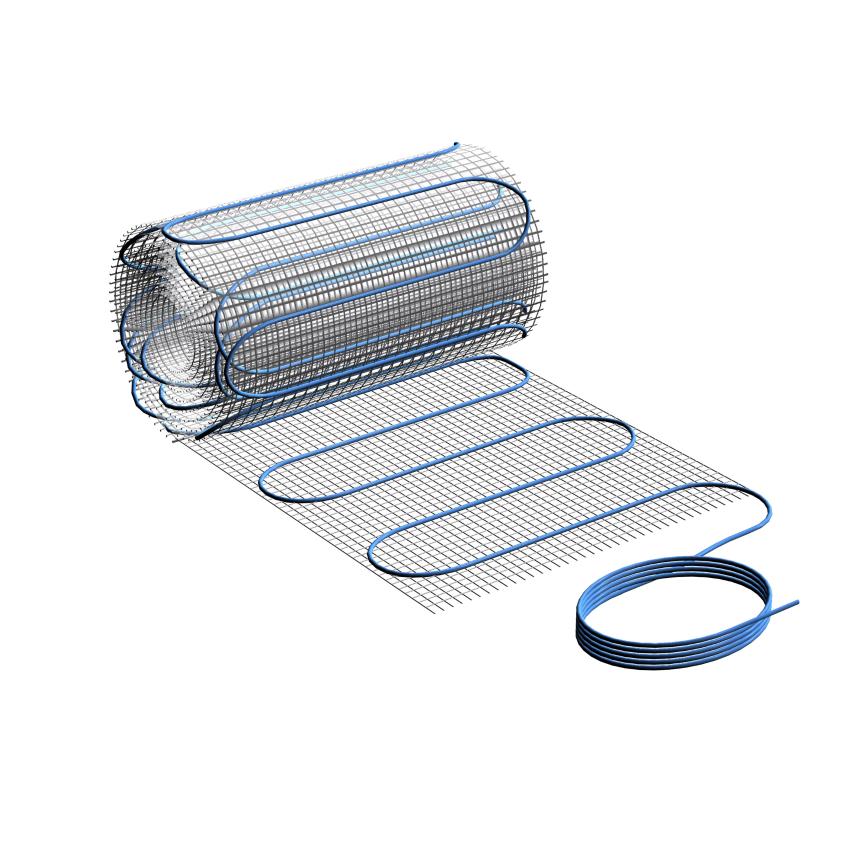

Comprises a twin conductor heating cable unit attached to a thin and flexible fiberglass net. Mat width 50 cm
